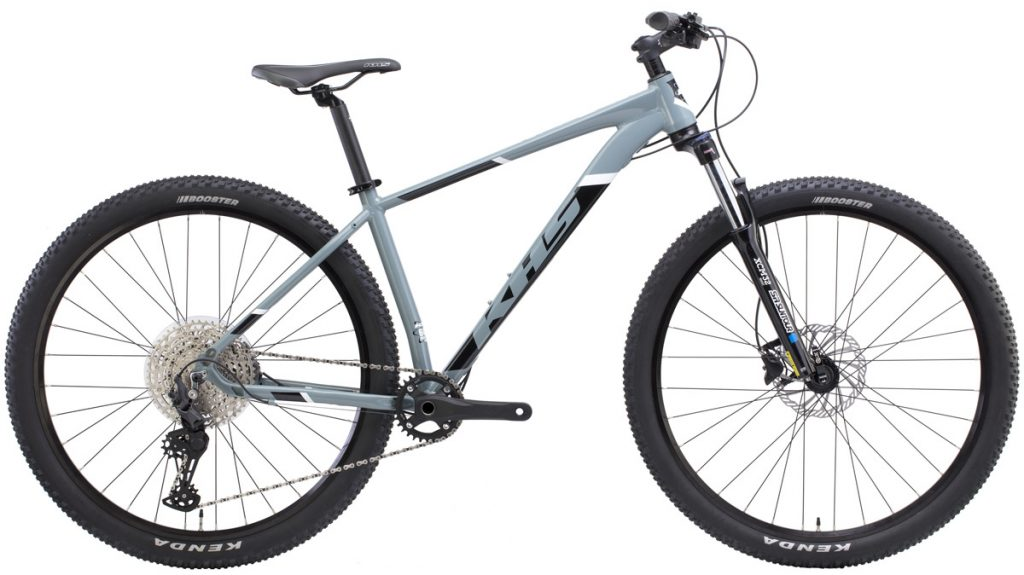

KHS Aguila

KHS Aguila

Regular price
Regular price Sale price
Sale Sold out

- 11-speed
- Shimano Deore
- Shimano hydraulic disc brakes
- Shimano Deore 11-speed rear derailleur
- Shimano Deore shifter
- Aluminum boost crank
- 32-tooth chainring
- Q2 lock-on grips
- Shimano CS-M5100, 11-51T cassette

Wheel size:
- Size Small: 27.5-inch
- Sizes Medium – X-Large: 29-inch

Specs

Frame 6061 Aluminum w/Custom Formed T/T & D/T, 141mm Boost, w/Replaceable Derailleur Hanger, 1.5 Taper, 29"/27.5 Plus Compatible, Internal Cables
Fork SR XCM 32-LO, 100mm, w/Hydraulic Lock-Out, 1-1/8~ 1.5 Taper, 15QR x 110 Boost, 29 Std/27.5 Plus
Rims S: Aluminum Plus Disc, 27.5x32H, Double Wall
M-XL: Aluminum Disc Double Wall, 29x32H
Hubs Front: KT Aluminum Disc w/CNC Rotor Flange, QR, 15mm x 110mm
Rear: KT Aluminum Disc w/CNC Rotor Flange, QR, Cassette, 141mm Boost
Spokes 14G Stainless Black 32x32
Tires S: Kenda Havok 27.5 x 2.6"
M-XL: Kenda Booster 29 x 2.4"
Bottom Bracket Outboard Cartridge Bearing
Crankset Aluminum 2-pc, Boost, 32T Narrow/Wide, S: 170, M-XL: 175
Shifters Shimano Deore, SL-M5100
Rear Derailleur Shimano Deore, RD-M5100
Cassette/Freewheel Shimano CS-M5100, 11-51T, 11-Speed
Chain KMC X10 w/MissingLink
Brakes Shimano BR-MT200 Hydraulic Disc, 180/160mm Rotors, Wave 12
Brake Levers Shimano BL-MT200
Handlebars Aluminum Riser, 31.8mm, 720x20mm
Tape/Grips Q2 Lock-on
Stem KHS Aluminum Threadless 4-bolt, 6-degree, 31.8mm, S: 60mm, M: 75mm, L-XL: 90mm
Headset Threadless 1-1/8"~1.5, Zero Stack
Seatpost KHS Aluminum Micro-Adjust 31.6mm
Saddle KHS Sport, Dual Density
Pedals Sold separately
